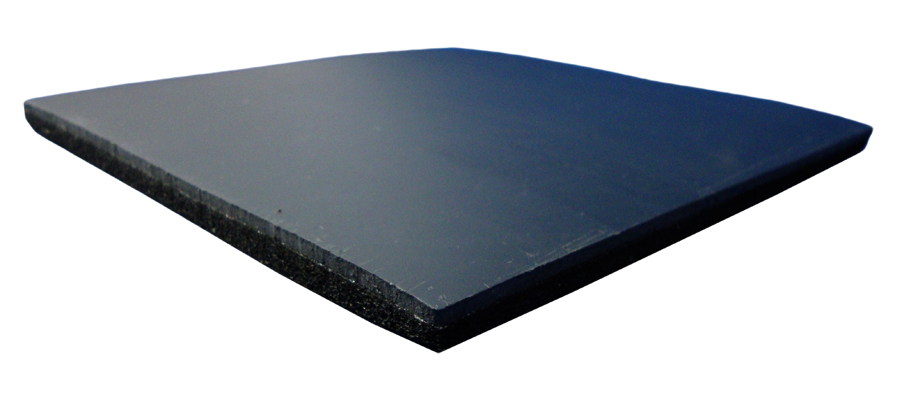

1 lb Mass Loaded Vinyl Barrier + 1/4" Closed Cell Foam

  • 100% Recyclable Mass Loaded Vinyl Barrier
  • Backed with 1/4" Closed Cell Foam

Closed Cell Mass Loaded Vinyl Barrier (MLVB) is standard non-reinforced 1lb per square foot barrier (1/8") with an AP-Armaflex closed cell foam decoupler (1/4") for a total thickness of 3/8". Typical applications for closed cell mass loaded vinyl barrier are retrofit wall applications where the Closed Cell Mass Loaded Vinyl is tacked or adhered to the existing sheetrock and another layer of sheetrock is applied over the material. Other applications include enclosures and car audio sound dampening.

Note: Open cell MLVB can be used as a flooring underlayment, but it is not recommended.

Material Composition: 100% Recycled Vinyl

Standard Pattern: Smooth/Foam

Applications: Retrofit Wall Applications, Enclosures, Car Audio Sound Dampening

Thickness: 1/8" Vinyl + 1/4" Closed Cell Foam = 3/8" Total Composite

Sizes: 48" Standard, 54" Non-Standard

Weight: 120 lbs/roll (+/- 5 lbs)

Colors: Black/Black

Flammability: Vinyl = MVSS302, UL-94 HF-1;
Closed Cell Foam = ASTM E-84 (<25 Flame & <50 Smoke) Class C

Tensile Strength: 500 PSI

Tear Strength: 100 lbs.

Service Temperature: -20°F - 180°F


LEED Information

Vinyl Recycled Content: 100%

Recyclable: 100%


Sound Transmission Class (db Frequency Hz)

  • 125

  • 13

  • 250

  • 17

  • 500

  • 21

  • 1000

  • 28

  • 2000

  • 33

  • 4000

  • 40

  • STC

  • 27
